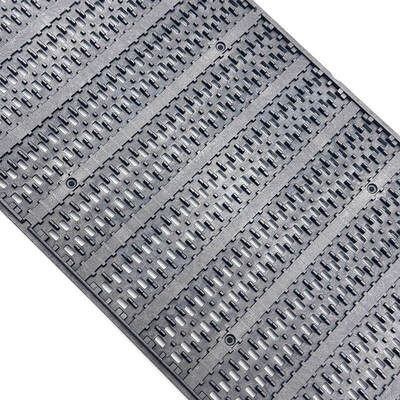

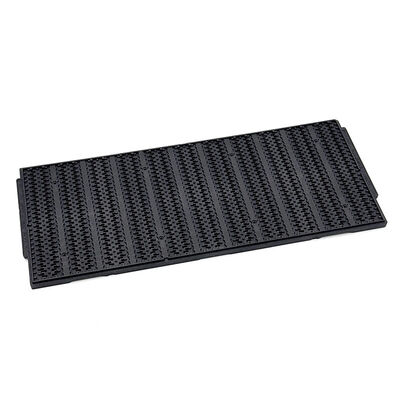

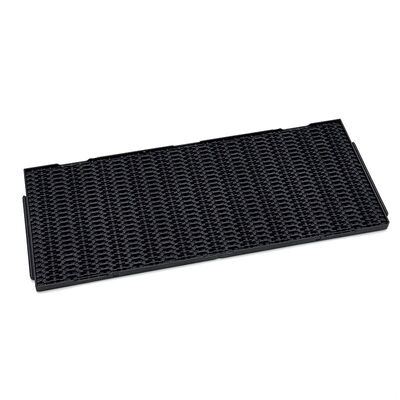

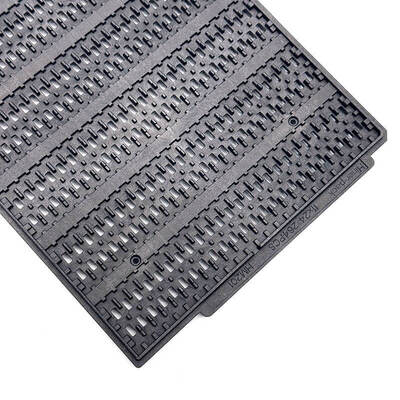

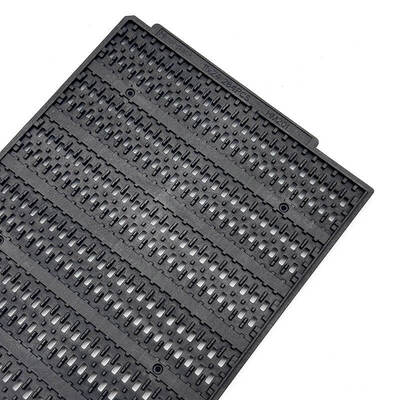

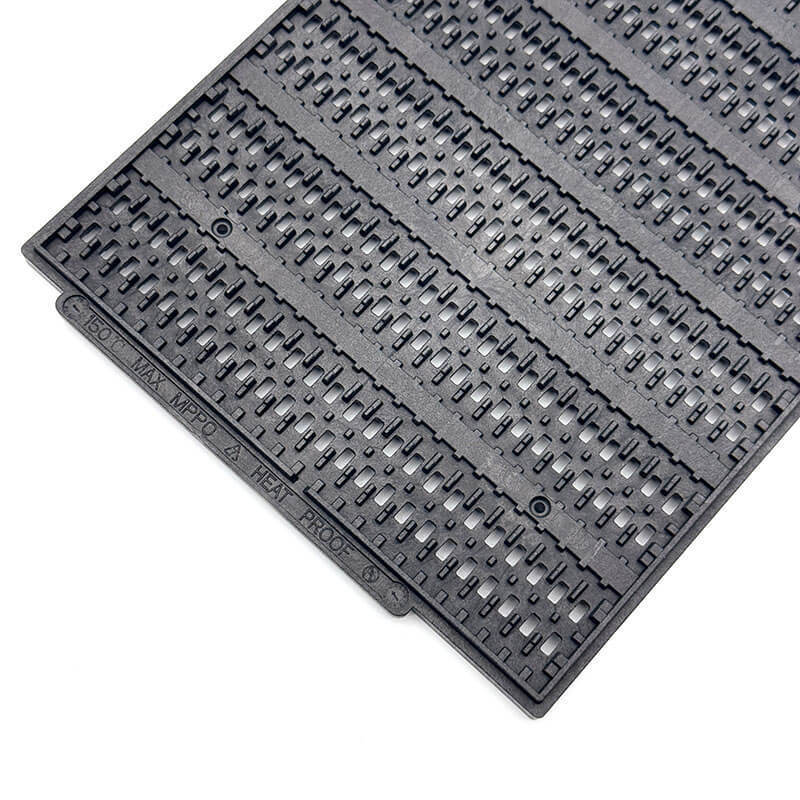

Cleanroom Compatible JEDEC Tray with ESD Protection and Custom Cavity for Semiconductor Packaging

Cleanroom Compatible JEDEC Tray with ESD Protection and Custom Cavity for Semiconductor Packaging

ब्रांड नाम: Hiner-pack
मॉडल संख्या: HN24227
एमओक्यू: 500 पीसीएस
कीमत: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
भुगतान की शर्तें: टी/टी
आपूर्ति करने की क्षमता: 2000 पीसी/दिन
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ROHS, ISO
ट्रे वजन:
बदलता रहता है, आमतौर पर प्रति गुहा 500 ग्राम तक
रंग:
ईएसडी सुरक्षा के लिए आमतौर पर काला या गहरा भूरा
गुणवत्ता आश्वासन:
डिलीवरी की गारंटी, विश्वसनीय गुणवत्ता
गुहा आकार:
20.36x3.3x1.89 मिमी
इन्कोटर्म्स:
EXW, FOB, CIF, DDU, DDP
मोल्ड प्रकार:
इंजेक्शन
पुन: प्रयोज्य:
हाँ
ट्रे का आकार:
आयताकार
स्वच्छ वर्ग:
सामान्य और अल्ट्रासोनिक सफाई
आईसी प्रकार:
बीजीए, क्यूएफपी, क्यूएफएन, एलजीए, पीजीए
पैकिंग स्तर:
परिवहन पैकेज
MOQ:
0.76 मिमी से कम
क्षमता:
11x14=264 पीसीएस
पैकेजिंग विवरण:
गत्ते का डिब्बा, फूस
आपूर्ति की क्षमता:
2000 पीसी/दिन
प्रमुखता देना:

JEDEC wafer tray for cleanroom

,

IC packaging JEDEC tray

,

wafer level packaging tray

उत्पाद का वर्णन
Cleanroom JEDEC Tray for Wafer Level Packaging
Designed for high-level semiconductor cleanroom environments, this tray minimizes contamination and ensures IC integrity.
Key Features/ Benefits
  • Ultra-low particle generation
  • Cleanroom compatible (wafer-level)
  • Stable ESD protection
  • Custom cavity available
Specifications
Brand Hiner-pack
Model  HN24227
Material  PPE
Package Type JEDEC
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 322.6×135.9×10.6 mm
Cavity Size 20.36x3.3x1.89 mm
Matrix QTY 11x14=264 PCS
Warpage MAX 0.76mm
Service Accept OEM, ODM
Custom Pocket Options Available
Applications
JEDEC trays are widely used for IC protection during manufacturing and transport, especially for ESD-sensitive devices
  • Wafer-level packaging
  • Cleanroom IC handling
  • Semiconductor fabs
Packaging & Shipping/ Services
JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.
About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Rich experience in JEDEC / IC / waffle pack trays
  • In-house mold design capability
  • Fast prototype development
  • Strict QC process
  • Stable supply for global semiconductor customers
